Over 33 Feet Wide!

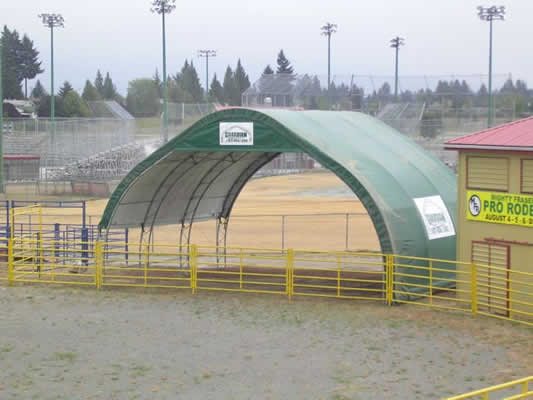

Free-span shelters covered with UV treated tarp material.

• Your frame will be manufactured using galvanized steel tubing.
• The truss top and bottom arches are 2” X 2” square steel.
• For maximum strength and endurance, the truss webbing is 1” dia. steel and is welded.
• For your safety, the trusses are 16” deep which provides you assurance of stability.
• The purlins are bolted to the truss connector plates at every truss.
• Steel 3/16” tensioning cables are supplied for your side walls giving that extra support.

• Custom lengths available. Typically 10' increments.

• You choose the leg length to give the clearance you need!

Please call for more information.

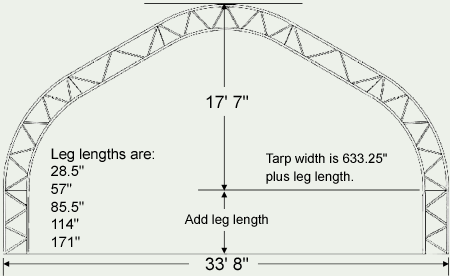

Widths available:

• 29'9" • 33'8"

• 37'9" • 41'10"

• 45'9"• 49'9"

• 57'9" • 61'9"
